DG-150S

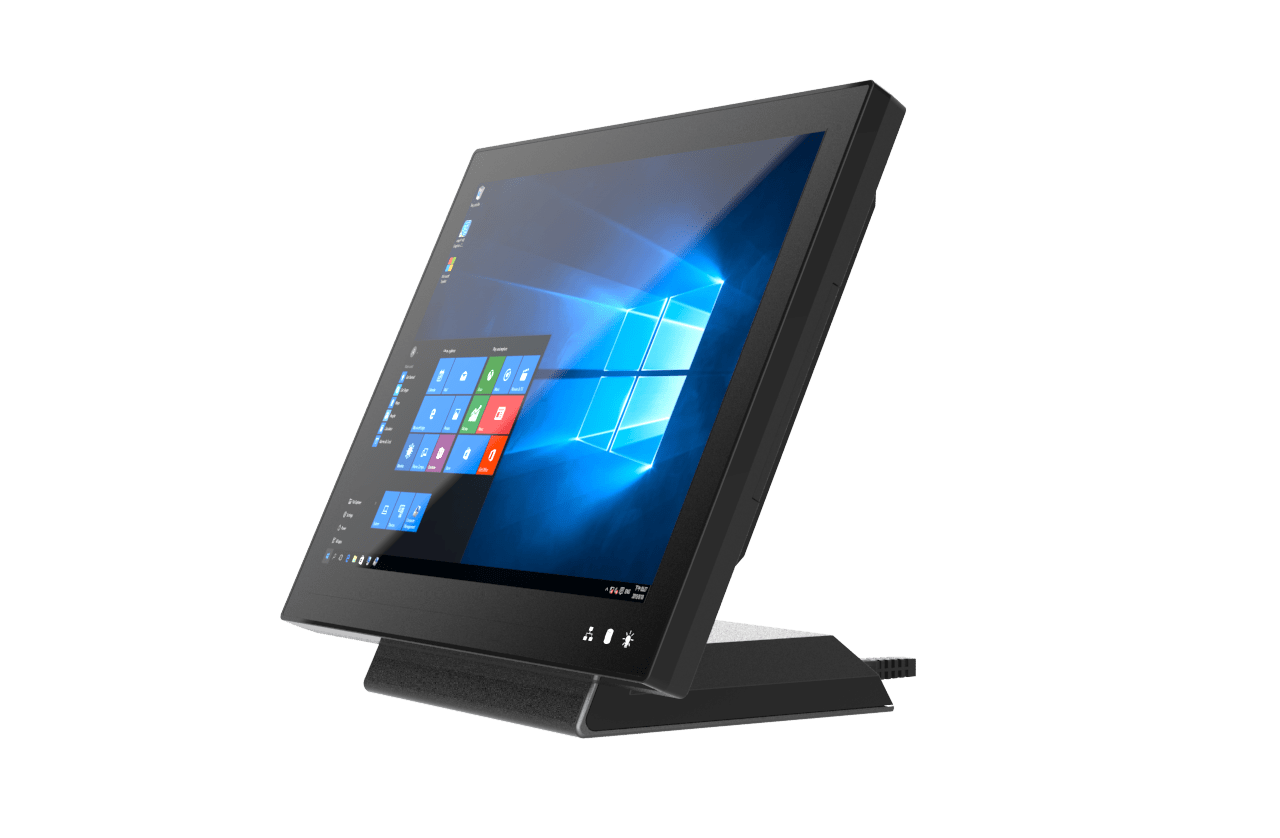

TVS-E DG 150S - POS Terminal

DG-150S
DRAGON DG-150S is a highly reliable POS Terminal with the performance of Intel® Skylake-U processors. Perfect for empowering your business with high performance and sophistication.
ADVANTAGES

15” TFT LCD touch Screen enabled with multi touch

IP 65 rated front panel

Multiple connectivity

Quite and improved performance
Features

WIRELESS LAN

Supports Windows and Linux

Multiple Interface connectivity
SPECIFICATIONS
Main Board Name
X8H
CPU
Intel® Skylake-U Processor: i3-6100U (2 cores, up to 2.3 GHz, TDP 15 Watt)
System Memory
SO-DIMM DDR4 x 1 2133MHz, 4 GB (supports upto 32 GB)
Graphic
Intel® HD Graphics 520
BIOS
AMI uEFI BIOS
O.S. Support
Windows 8, Windows Embedded 8 Standard/Industry Retail WIN 10
Power Supply
External adapter, 19V DC input, 65Watt
Display Size
15″ TFT LCD Panel (LED Backlight)
Panel backlight type
LED
Brightness
400nits
Resolution
1024 x 768
Touch Screen
P-cap
Interface
SATA x 3 (6.0Gb/S) Support RAID 0/1
HDD or SSD
2.5″ SATA HDD / SSD x 1 M.2 2242 SSD Slot x 2
COM Port
COM 1 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS selection)
COM 2 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS selection)
COM 3 : RJ50 to DB9 RS232
COM 2 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS selection)
COM 3 : RJ50 to DB9 RS232
USB
USB 3.0 x 4 USB 2.0 x 2
Cash Drawer
RJ12 x 1, support 12V / 24V DC cash drawer
Parallel and PS/2 Ports
Supported via optional conversion cable
Audio
2 Watt Speaker x 2 (Stereo)
DC-in
19VDC input, 2pins jack x 1
Power Button
Power button x 1
LAN
Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
Display Port
Mini DisplayPort x 2
COM 4
RS232 pin-header x 1 (no power, Option)
COM 5
RS232 pin-header x 1 (no power, Option)
COM 6
RS232 pin-header x 1 (5V for VFD)
Battery
CR2032
Physical Dimension
( WxDxH )
( WxDxH )
36 x 18.9 x 29 cm (14.2 x 7.5 x 11.4 inch)
Weight
5.3 kg
Communication
Wireless LAN module, M.2 2230 E-key (Optional)
Expansion Slot
M.2 2230 E-key slot x 1 (for Wi-Fi module, included USB2.0 signal) M.2 2242 SSD Slot x 2
Color
Black / White
Material
Plastic / Aluminium / SECC
