CHAMP RP
TVS-E Champ RP - Thermal Receipt Printer
CHAMP RP

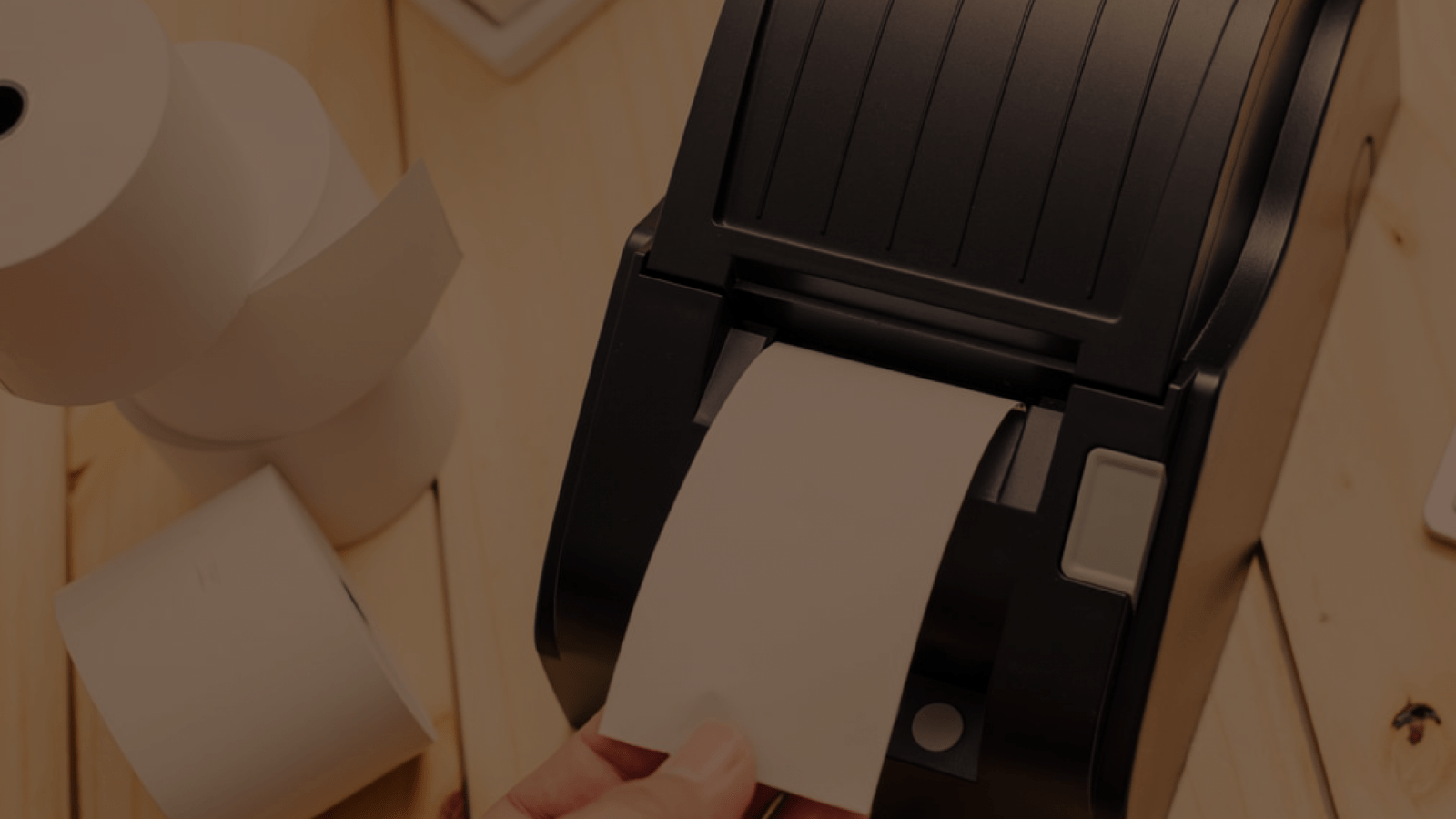

The Champ RP comes with enhanced speed and efficiency. It is a definite plus for retail business as it accelerates the billing process by reducing transaction time and cutting back on long queues. This printer comes with multiple interface options such as USB, RS232, Ethernet.
ADVANTAGES
Fastest printer in this segment
Compact and advanced receipt printer
Time Saving
Features
200 MM HIGH SPEED PRINTING
BUILT-IN DATA BUFFER WHICH CAN RECEIVE NEW TASK WHEN PRINTING IS IN PROGRESS
CHARACTERS CAN BE ENLARGED, BONDED, UNDERLINED, LINE SPACE AND CHARACTER SPACE
COLUMNS PER LINE ARE OPTIONAL USING DIP SWITCHES
INTERFACE SERIAL-USB-ETHERNET
SUPPORTS 2D BARCODES PRINTING QR CODE / PDF417
SPECIFICATIONS
Print Method
Direct Thermal
Print Speed
230mm/s
Print Width
79.5±0.5mm
Print Length
64/72 mm
Interface
Serial + USB + Ethernet
Weight
2.2Kg 4.85lbs
Reliablity Mechanism
150Km
Dimension
169 x 129 x 130 W x D x H
Character Size
ANK Font Font A: 12*24dots, Font B: 9*17dots
Barcode Type
Support 2D Barcode Printing QRcode/PDF417
Data
128K bytes
NV Flash
256K bytes
Cash Drawer out
DC 24V/1A
Power Adapter
Input: AC 110V/220V, 50 ~ 60 Hz
Output: DC 24V/2.5A, 50 ~ 60 Hz
Work Environment
Temperature : 0 ~ 40%, Humidity : 10 ~ 80%
Storage Environment
Temperature : 10 ~ 60%, Humidity : 10 ~ 90%
Compatibility
Compatible width EPSON/POS Command sets
