HD 745

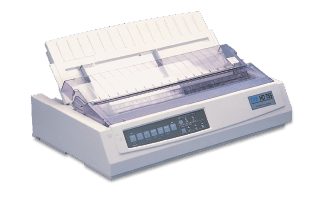

TVS-E HD 745 - Dot Matrix Printer
HD 745
ADVANTAGES
Easy-to-operate front panel with four sturdy buttons
Pan-India best-in-class service support availability
Features
CODE CAPABILITY
UPTO 1 – 4
IDEAL FOR ERP
APPLICATIONS
10,000
POWER-ON
HOURS – HIGHER RELIABILTIY
PRINT HEAD LIFE : 200 MILLION CHARACTERS @ 33% PRINT DENSITY IN 25% DUTY CYCLE
FASTER PRINTING
SPEED – 390 CPS
SPECIFICATIONS
Print Method
Serial Impact Dot Matrix
Print Direction
Bi directional Logic seeking
Print Head
Type 24 Wire
Print Width
136 Column
Print Head Life
200 million characters
Character Pitch cpi
10 12 15
Utility Draft (cps)
260 312 390
Letter Quality (cps)
87 – 104
Utility Draft
Gothic
Letter Quality
Courier, Gothic, Prestige, Orator, Roman, Swiss
Letter Quality Scalable
Courier & Gothic (22 to 216 points in 1 pt increments)
Resident bar code
Code 39, UPC A, UPC E, EAN8, EAN13, Interleaved 2 of 5, Code 128, PostNet
Paper path standard
Top, Rear and Bottom
Continuous Tractor feed standard
Rear Push
Continuous form width
3 – 16″
Cut sheets width
7.2 – 14.3″
Paper thickness max
Tractor feed 0.36 mm
Friction feed 0.44 mm
Copy capability
1+4 with carbon
Fabric-Ink Type
Super high density – seamless
Fabric-Life
3 Million Characters
Input Buffer KiloBytes
79 KB
Reliability MTBF Power on Hours
10,000 POH
Acoustics Noise level
57 dB(A) in normal mode 52 dB(A) in quiet mode
Emulation
Epson LQ, IBM Pro printer, IBM AGM
Standard Interface
Centronics Parallel & USB
Optional Interface
RS232C serial
Drivers
Microsoft® Windows® Operating System 95, 98, 98SE, 2000, Me, XP, Vista, NT 4.0, Linux Redhat
Operating voltage
198 – 264 V AC
Mains frequency
50 – 60 Hz
Power Standby
10W
Temperature
+5 to + 45ºC
Relative Humidity
10% to 80%
Size ( W x H x D ) mm
552 x 116 x 345
Weight (kg)
9.2
Best Suited for Printing
Reports | Statements | Proposals | Letters & Correspondence
1 kg = 2.2lbs, 1 inch = 2.54 cms
*Max. possible copy capability **@ Draft 10 cpi
#@ 33% print density and 25% duty cycle
Excluding print head @ 33% print density and 25% duty cycle
#. in lieu of USB
