BS-i203G

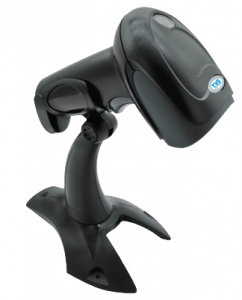

TVS-E BS-i203 G - Lightweight Barcode Scanner
BS-i203G
ADVANTAGES
Enhanced High Resolution sensor for rapid and precise scanning
High decoding ability to read damaged , low contrast codes,
bar codes from mobile screens
Features
ENCHANCED HIGH RESOLUTION SENSOR FOR
RAPID AND PRECISE SCANNING
HIGH DECODING ABILITY TO READ DAMAGED
AS WELL AS LOW CONTRAST CODES BAR CODES
READS SECURE HIGH DENSITY QR CODES
SUPERIOR BARCODE READING AND IMAGE CAPTURE
BUILT WITH HIGH DURABILITY, DESIGNED TO
WITHSTAND 1.8 MTS DROP
IP 54 PROTECTION
SPECIFICATIONS
Scan mode
Handheld 2D Barcode Scanner
Alarm node
LED light alarm, Buzzer alarm
Scan rate
60 frames/sec, 300 scans/sec
Resolution
1280 pixels (H) x 1024 pixels (W)
Field of View
39°(H)x28°(W)
Scan angle
360°(Roll), ±65°(Skew), ±65°(Pitch)
Symbol contrast
>20% minimum reflective difference
Barcode density
4mil
Light Source
(Aimer) Red color LED;(Illumination) White color LED
Decode Ranges
Code39(5mil): 6-26cm
Code39(13mil): 6-45cm
QR(15mil): 7-25cm
QR(20mil): 7-40cm
QR(30mil): 7-60cm
Barcode type
1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, ChinaPost(Hong Kong 2 of 5), Korea Post.
2D: Codeblock A, Codeblock F, PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
Default open: Codabar, Code39, Interleaved2of5, NEC2of5, Code93, Code128, GS1-128, UPC-A, UPC-E0, EAN/JAN-13, EAN/JAN-8, GS1-DataBar, PDF417, QR, DM, Aztec
DC+5V±5%
Operating Power
266mA(working); 130mA(standby); 210mA(Starting)
Electric Safety
En55022; 2006+A1: 2007 En55024: 1998+A1: 2001+A2: 2003
Shock Specifications
2000G, 0.7ms, half sinus, 3 axes
-20 °C to 60 °C
Storage Temperature
-30 °C to 70 °C
Humidity
5% to 95% relative humidity, non-condensing
ESD
+/-8 kV contact discharge; +/-15kV air discharge
Drop resistance
159.99mm*69.38mm*107.61mm
Weight
129.5g
ABS+PC
IP Rate
IP54
Ambient Light Immunity
0-100000 Lux.
USB cable
1.8m
