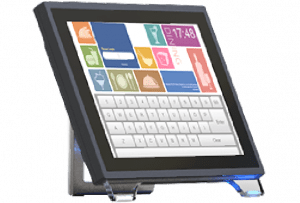

TP C4515 STAR

Offering high performance and readability, this touch POS system is most suitable for use where long hours of intensive billing is common.
ADVANTAGES

Compact, durable, and rugged

Multiple Connectivity

Quiet operations and efficient performance

Robust, stylish, and ideal for intensive usage

Features
ALUMINIUM DIE CASTING BACKCOVER
HDD EASY
MAINTENANCE DESIGN
OPTIMAL
MSR / IBUTTON / FINGERPRINT / VFD / 2ND DISPLAY
WALL MOUNTABLE VESA 100*100 STANDARD
WIRELESS
LAN
SPECIFICATIONS

CPU Support

Intel Celeron J1900

Memory

DDR3L SODIMM, Standard 2 GB 1 Slot, Upto 8 GB

Network

10/ 100/ 1000 Base – T fast Ethernet

Power Supply

6090 watt power adapter

Audio

2 W speaker

System weight

Easy stand with power adapter across 6 kg

Dimension W * H * D

382 * 332 * 321 mm with 45 degrees

OS Support

Win 8 / POSReady7

SATA

1 * 2.5″ HDD 320 GB or SSD

USB

On rear
3 x USB 2.0
1 x USB 3.0
On side bezel
1 x USB 2.0
Serial Ports
3 + 1 optinal * RJ – 45 all support + 5V/12V selectable

LAN

1 * RJ -45

VGA

1 * DB – 15

Cash Drawer

1 + 1 optional, with Y cable * RJ11 + 12 V or + 24V Selectable

DC

1 * 4 pin DC Power / Jack

Optional Customer Display

VFD, 20 columns and 2 lines, each column is 5 * 7 dots

MSR & iButton

JIS – or II, ISO Track 1 + 2 + 3 PS / 2 Interface

2nd Display

8″ or 10.4″ LCD

Fingerprint

8 – bit grayscale, reader

LCD Display

15 TFT LCD

Resolution

1024 * 768

Brightness

250 cd / m

Touch Screen

NonBezelfree: 5 wire Analog resistive

Tilt Angle

4565 degree with easy stand
068 degree with normal stand

EMC & Safetyp

CE / FCC

Operating Temp

0 – 35° C

Storage temp

5 – 60° C

Humidity

20 -90 %
